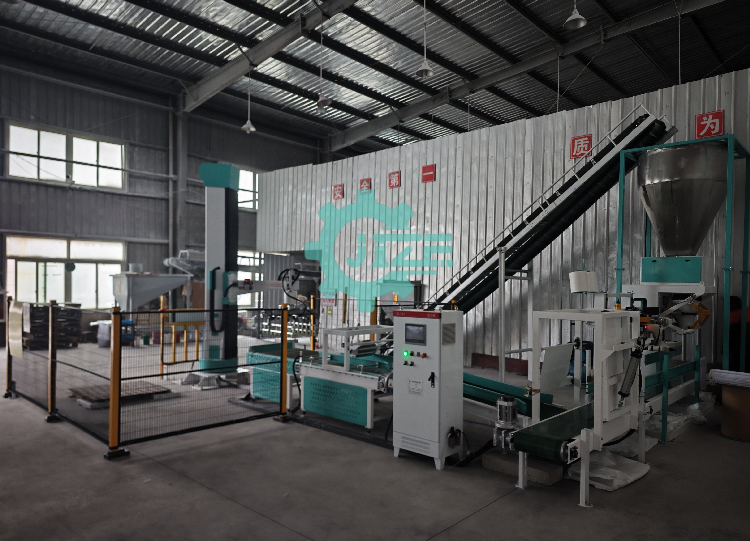

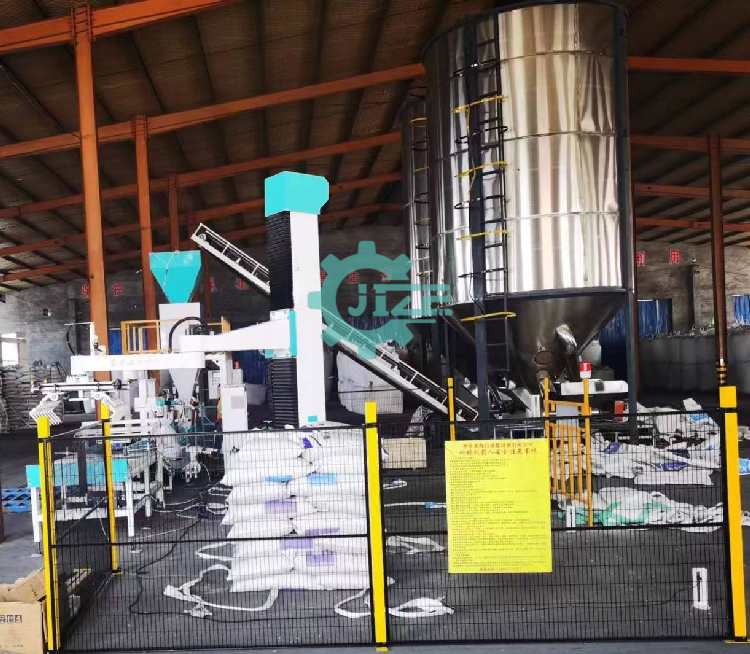

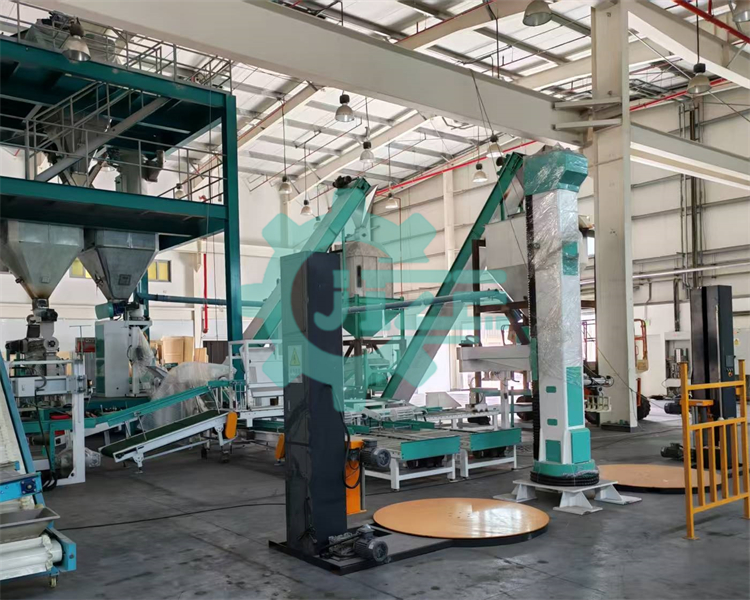

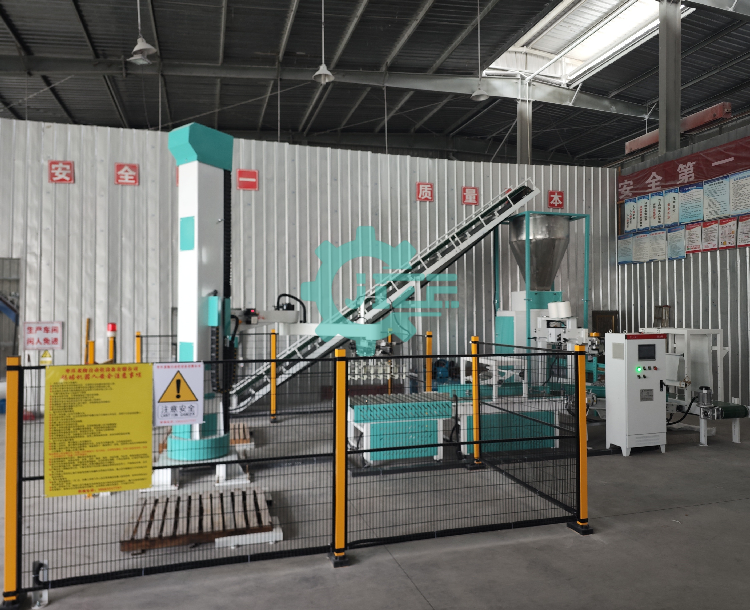

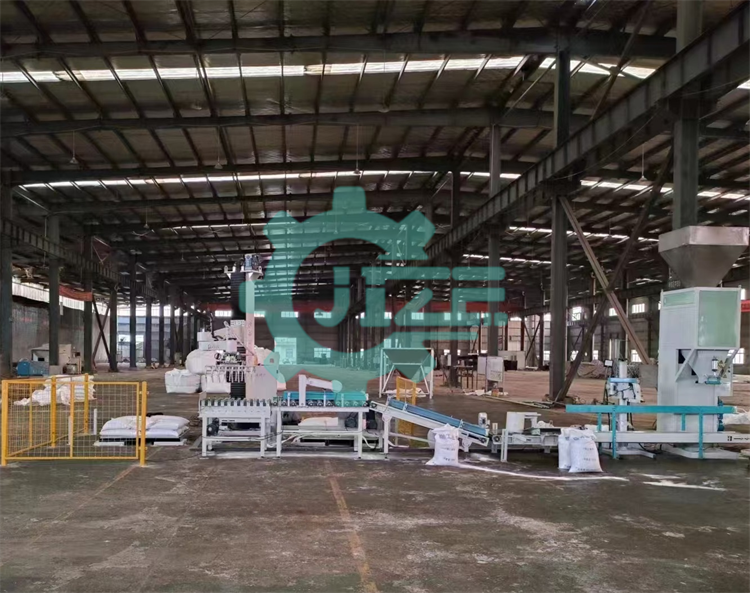

LH120-2400 Column palletizr

Main features

1.Unique linear actuator: clever four-axis joint mechanism, making the robot action program is simpler, more accurate control.
2.Energy-saving and environmental protection robot arm design: high strength and reasonable production, not only make the arm movement more flexible, but also reduce energy loss.
3.Simple demonstration operation and friendly graphical operation interface: fewer demonstration positions and simple operation interface make on-site debugging easier and on-site efficiency greatly improved.
4.Real-time on-site monitoring: high-precision on-site action simulation software, you can remotely understand whether the program on-site normal action, automatic interference monitoring to avoid interference collision.
5.Pre-layout on-site simulation simulation: the use of powerful 3D simulation/programming software, can be easily completed in the office robot programming, layout, interference monitoring, on-site action simulation and other series of work has become simple and effective, thus greatly reducing the debugging time on-site to improve the overall production efficiency.
Palletizing parameters

1	Palletizing capacity	300-450 times/hour
2	Number of palletizing layers	5-8 layers
3	Maximum stacking height	1.8 m
4	Program storage	No limted
5	Palletizing working time	24 hours

Palletizing robot parameters

1	Palletizer Name Model	LH120-2400
2	Degree of freedom of movement (axes)	4
3	Maximum load capacity (kg)	120
4	Repeat positioning accuracy (mm)	±0.3mm
5	Driving method	Servo Drive
6	Carrier	Gripper
7	Palletizing memory	Intelligent Memory
8	Maximum coverage (mm)	2350
9	Body weight (kg)	956
10	Installing method	Ground
