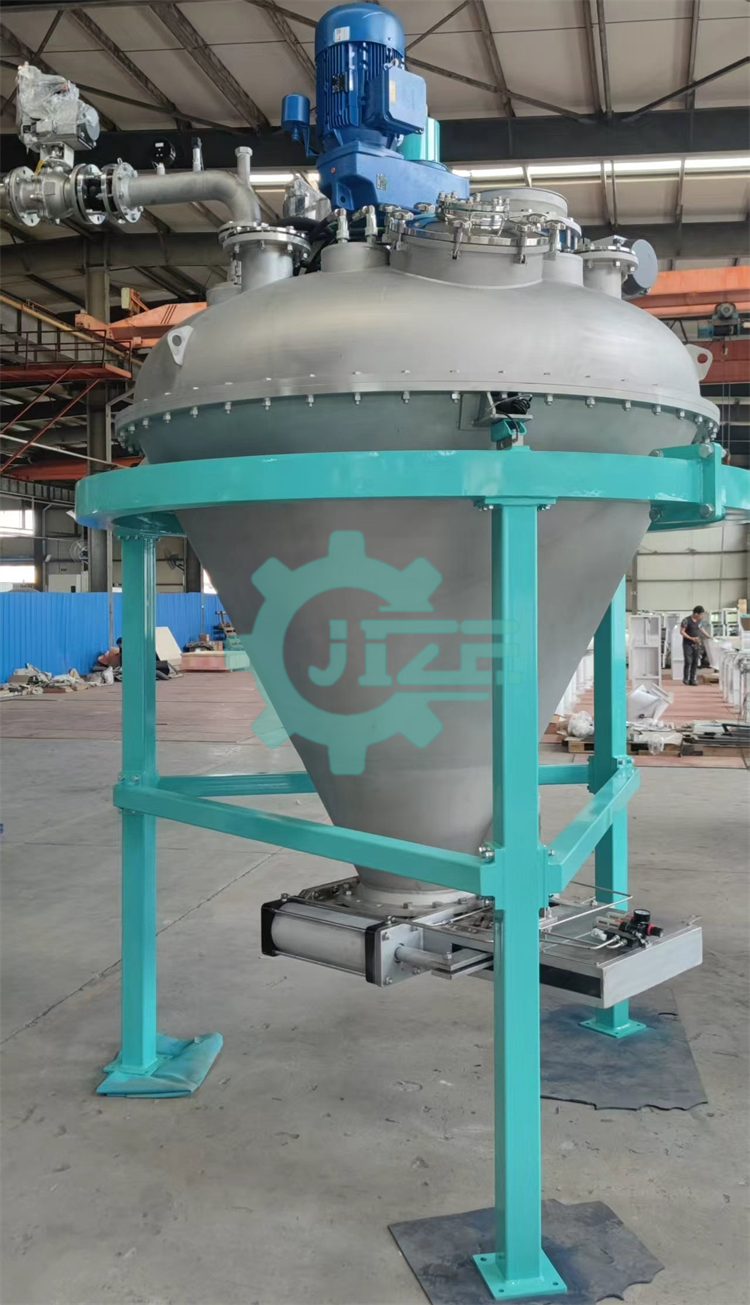

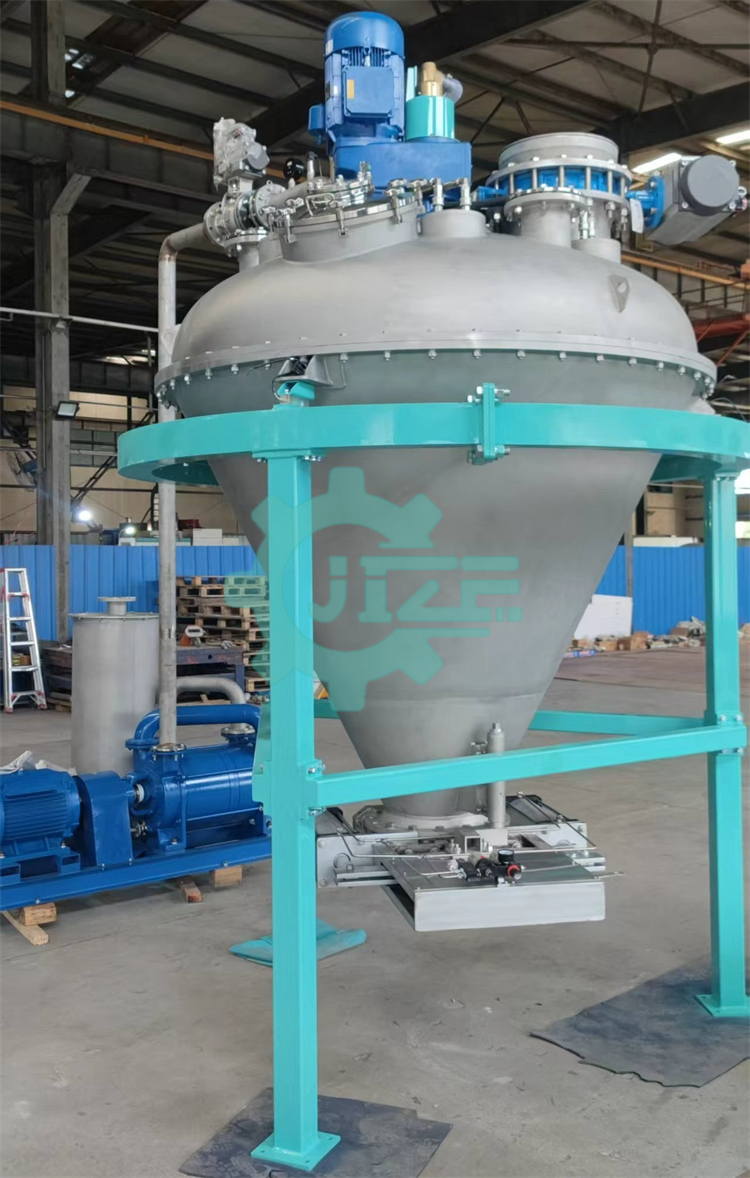

Vacuum coating machine

 Vacuum coating machine



Description:
·Uniform coating with low breakage rate can achieve the best quality;
·8-station circular fan-shaped nozzle system with no coating dead corners;
·The new spiral rotor and feed gate structure greatly reduce pellet breakage and residue rate;
·Accurate step-by-step vacuum release system ensures excellent liquid permeation effect;
·The part in contact with pellets is made of stainless steel to ensure safety and hygiene;
·The entire vacuum coater system adopts international first-class technologies, stable and reliable.
Parameters:
Model Volume
(L)
Capacity
(T/H)
Main power
(KW)
Vaccum pump power (KW) Liquid addition amount
SPZL2000 2000 4~8 15 22 1~36%
SPZL3000 3000 6~12 22 22 1~36%
SPZL4000 4000 12~15 30 22 1~36%
SPZL5000 5000 15~20 37 22 3~36%

Pellet dia. (mm) Working time (m/batch) Coating
uniformity
Residual
rate
Max. vacuum degree (mbar) Vacuum
retention
1~30 5~7 Cv≤7% ≤0.5% 40 ≤100mbar / 6min
