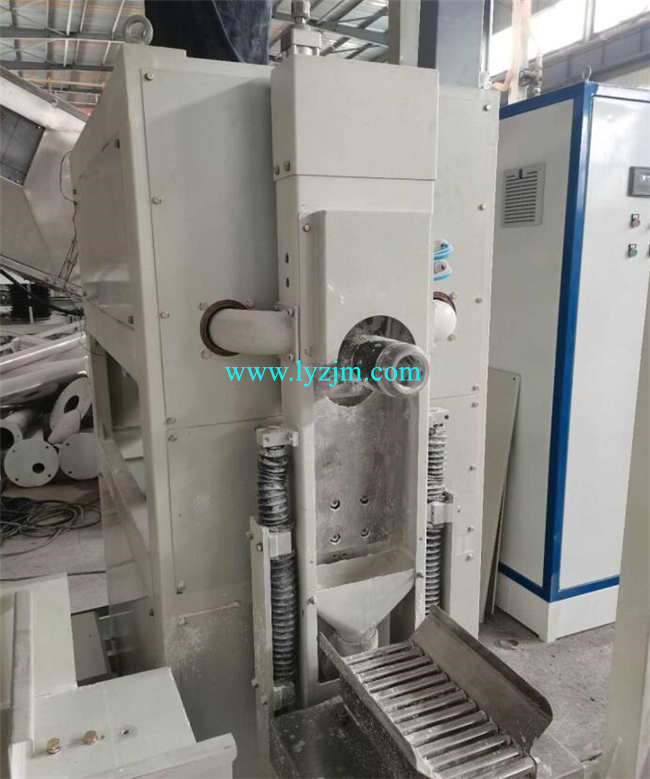

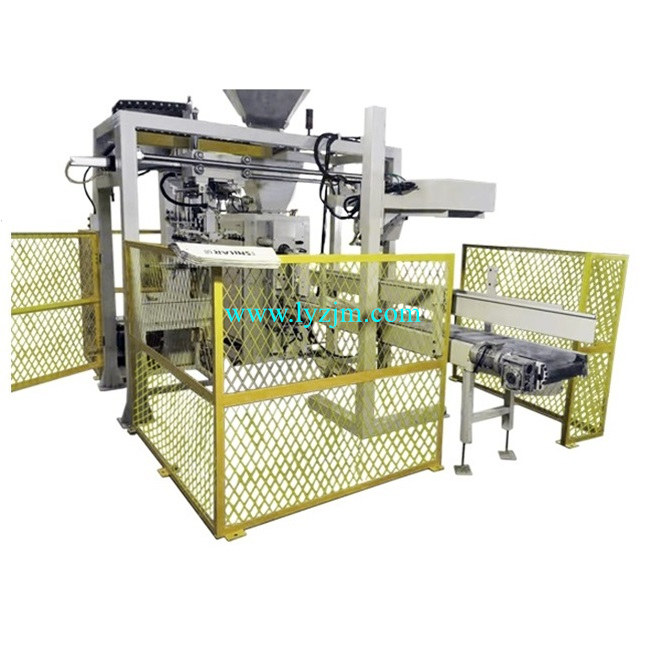

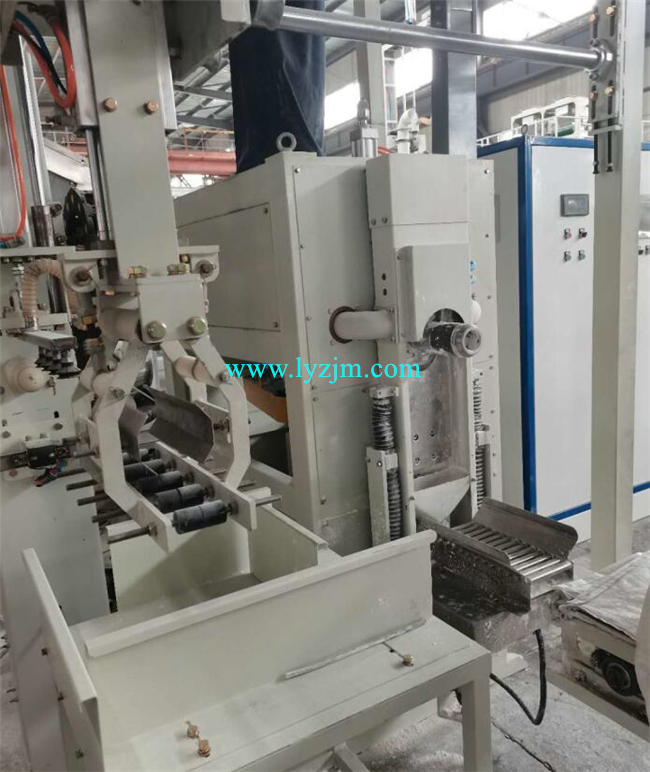

VPM-25 Valve Bag Packing Machine

1.Introduction

The VPM-25 valve bag packing machine is suitable for the packing of powder materials, granular materials and powder-granule materials, such as: dry powder mortar, spar, quartz sand, river sand, activated carbon, refractory materials, resin powder, pigment powder, carbon black, alumina, titanium dioxide, etc.

With advantage of fast packing speed, high precision, good environmental protection and so on. The perfect exhaust system and good sealing performance can prevent dust come out when running.
2.Technological Process

The materials flow down from finished product bin to buffer hopper of the packing machine, and homogenized by the homogenization and mixing system, so can effectively discharge the gas contained in the materials from the buffer hopper, and also can prevent the material from agglomeration, so as to ensure the smoothness of the whole packing process.

During the packing process, the materials are filled into the bags by a screw feeder controlled by frequency conversion. When the filling weight reaches the preset quantitative value, the packing machine stops feeding, and the pneumatic device returns the bags to the conveyor to complete a single bag packing.

3.Features

3.1.Using pneumatic feeding or screw feeding, can be applied to all kinds of packing materials, and valve bags.

3.2.Compact structure and small installing size. The operation is simple and convenient, and easy to maintain.

3.3.Only need bagging and pressing the start button, with high level of automation.

3.4.Pressing the air out of materials, and increasing the bulk density without damaging the materials.

3.5.Using high-precision weighing controllers, high-precision sensors and other new advanced technologies and devices. Using two-stage flow control filling method, with the advantages of fast weighing and high measurement accuracy.

3.6.Equipping with advanced dust collector to make the workshop clean without dust.

4.Technical parameters

4.1.Packing range: 5-50 kg/bag.

4.2.Division value: 10 g.

4.3.Packing speed: 100-250 bags / hour(according to packing materials).

4.4.Packing precision: 0.2%F、S.

4.5.Working environment: relative humidity less than 90%.

4.6.Compressing air: 0.4～0.8MPa, max air consumption: 1.0 m³/min.

4.7.Packing bags: valve bags.
