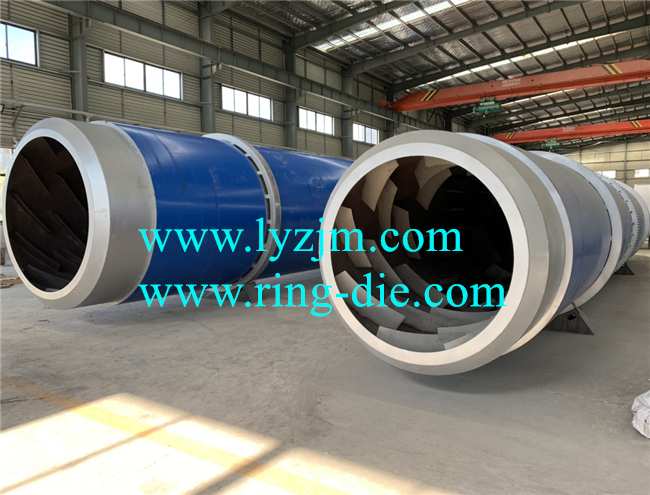

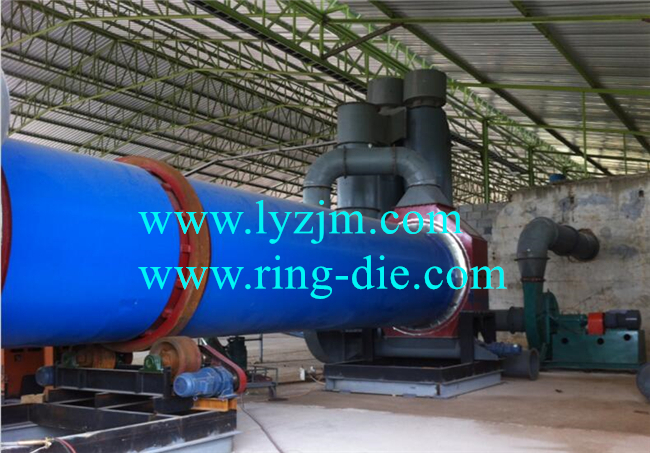

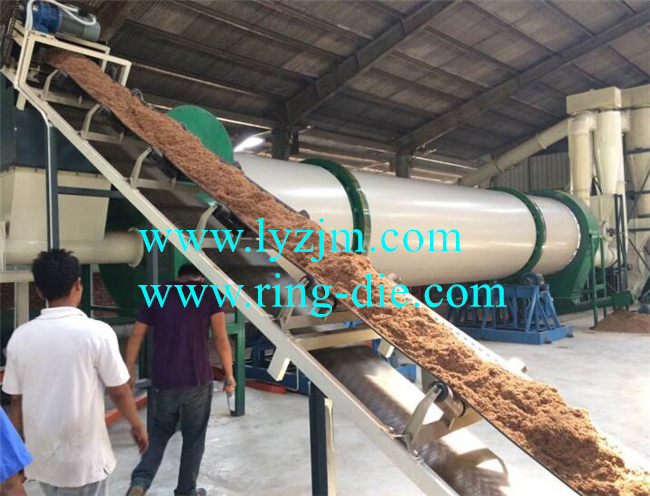

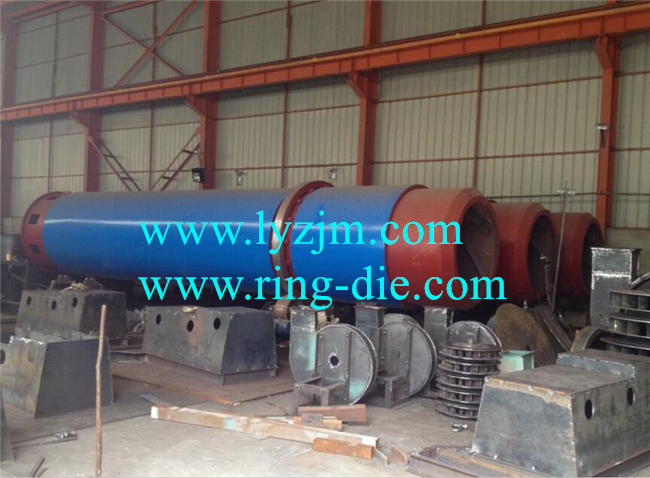

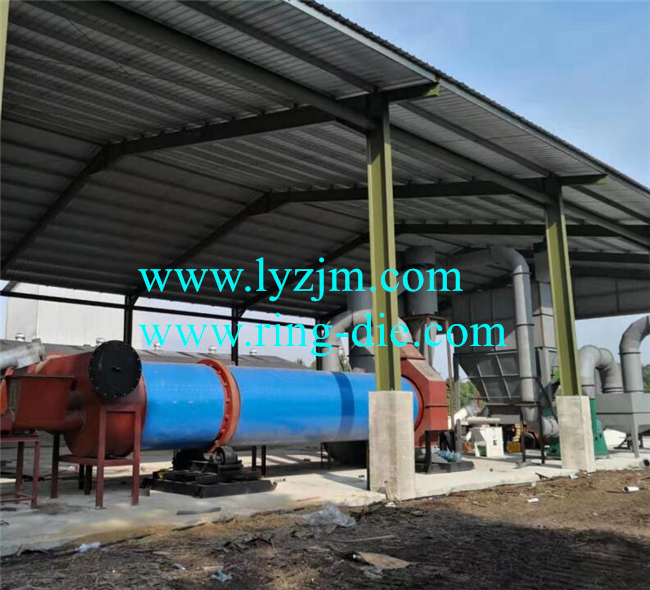

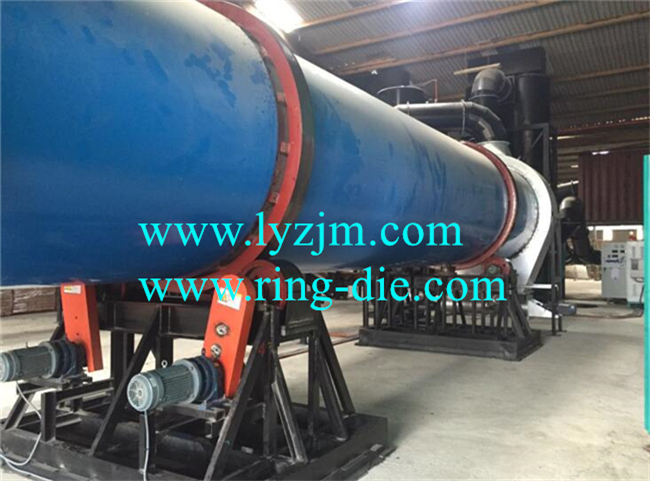

WDM Dryer Machine

Wet sawdust dryer, dryer machine, drum dryer, sawdust dryer, fertilizer dryer, alfalfa drying machine,marigold drying equipment,cassava drum dryer,chicken manure drying machine,rotary drum dryer machine

1.Features

1.Inverter control of input and output speed, ensure uniform and stable moisture in the dried sawdust.

2.Explosion-proof function to prevent fire and explosion.

3.Large processing capacity and high heat efficiency. Heat efficiency can reach 60%.

4.The drum with thermal insulation board, the heat efficiency of thermal insulation is over 70%, and the heat efficiency is increased more than 50%.

5.Special board design can increase the touching area between the board and wet sawdust, so can shorten the drying time.

6.After the main drum drying, the end airflow will dry again, on the one hand, the drying efficiency can be improved, and on the other hand, the hot exhaust gas emission can be reduced.

7.With dust collecting system, it can collect dust, and more environmental protection.

8.In the hot stove, will set firewall, so can prevent fire into the drum dryer.

9.There are input and output temperature meter in the electric control cabinet, so can according to the temperature to control the drying time, then control the final dried sawdust’s moisture.

2. Technical parameters

Diameter

Length

Capacity

Fan power

Remark

Ø1.2M

9M

1-2T/H

22KW

Input raw material’s moisture less than 50%, output dried product’s moisture less than 15%

Ø1.5M

9M

2-3T/H

30/37KW

Ø1.8M

11M

4-5T/H

37/45KW
