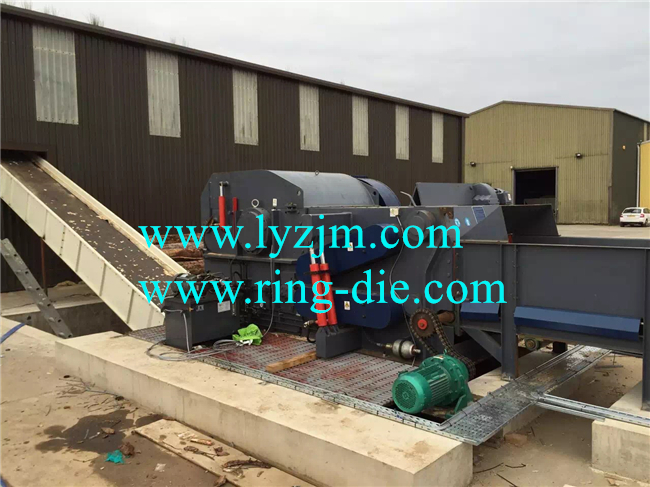

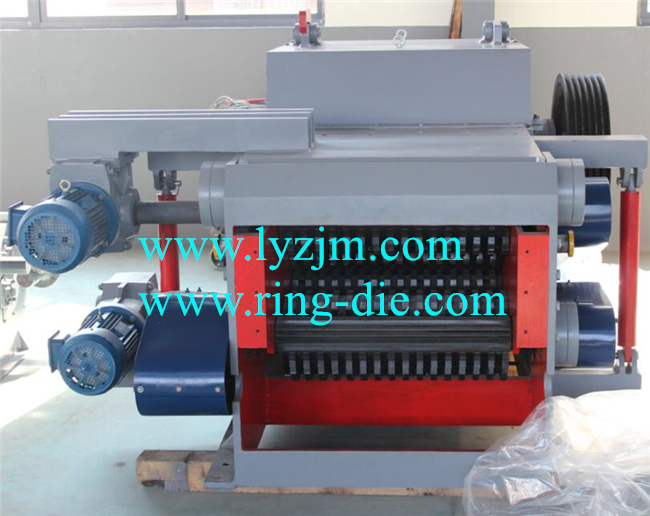

BX Wood Chipper

Wood chipper, wood log chipper, wood veneer chipper, bamboo chipping machine, wood pallet chipping machine, straw cutting machine, wood crusher, wood shredder, wood cutter, Wood chipping machine, wood crushing machine, wood grinding machine, wood cutting machine, wood shredding machine, Wood chips making machine

1.Advantage

1.1.The engine of wood chipper, welded by high strength sheet metal, is the support foundation for the whole machine.

1.2.Dead-knife seat support welded with the engine base is used to put the knife seats.

1.3.The pressed block fasten the dead knife in the knife seats by specialized in manufacturing of high strength bolts.

1.4.The knife base is fixed in the engine base by clamp which can pass through the hole of side wall of base free.

1.5.The chips can fall down through the screen and discharge the bottom of engine base.

1.6.Oversized wood chips can be broken by grinding rod installed in the engine base.

2.Technical Parameters

           Technical parameters                   Model

BX216

BX218

BX218D

BX218-11

BX2110A

BX2110B

Diameter of cutters' roller(MM)

650

800

800

800

1000

1000

Feeding size(HXW)

180X500

225X680

240X750

240X1050

330X750

330X850

Quantity of fly-cutters(PCS)

2

2

2

3X2

2

2X2

Speed of cutters' roller(RPM)

590

650

650

650

550

550

Feeding speed(M/MIN)

37

38

38

39

37

37

Max diameter of logs(MM)

120

160

160

for board

170

185

Capacity(M³/H)

10

22

38

30

55

62

Chips size(MM)

30

30

30

20

33

33

Main motor power(KW)

55

110

132

160

160

185

Feeding roller power(KW)

3X2

4X2

4X2

5.5X2

7.5X2

7.5X2

Pump power(KW)

1.5

1.5

1.5

1.5

2.2

2.2

        Technical parameters                   Model

BX2110

BX2113A

BX2113B

BX2113-11

BX2113-13

BX2116

Diameter of cutters' roller(MM)

1000

1300

1300

1300

1300

1600

Feeding size(HXW)

330X1050

400X700

400X850

400X1050

400X1250

600X1250

Quantity of fly-cutters(PCS)

2X2

3

3X2

3X2

4X2

4X2

Speed of cutters' roller(RPM)

550

420

420

442

340

350

Feeding speed(M/MIN)

37

38

38

43

42

42

Max diameter of logs(MM)

200

230

240

250

250

310

Capacity(M³/H)

77

64

78

108

126

180

Chips size(MM)

33

30

30

32

32

30

Main motor power(KW)

220-250

200-250

250

315

450

710(10KV)

Feeding roller power(KW)

7.5X2

7.5X2

7.5X2

11X2

15X2

18.5X2

Pump power(KW)

2.2

3

2.2

2.2

3

4
