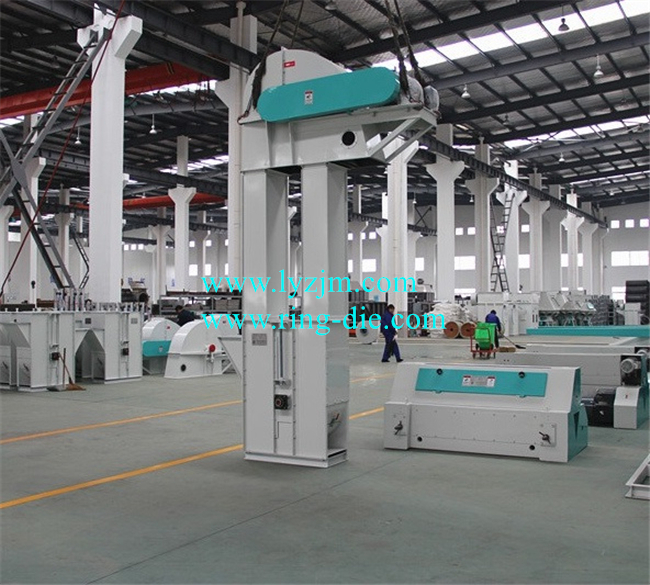

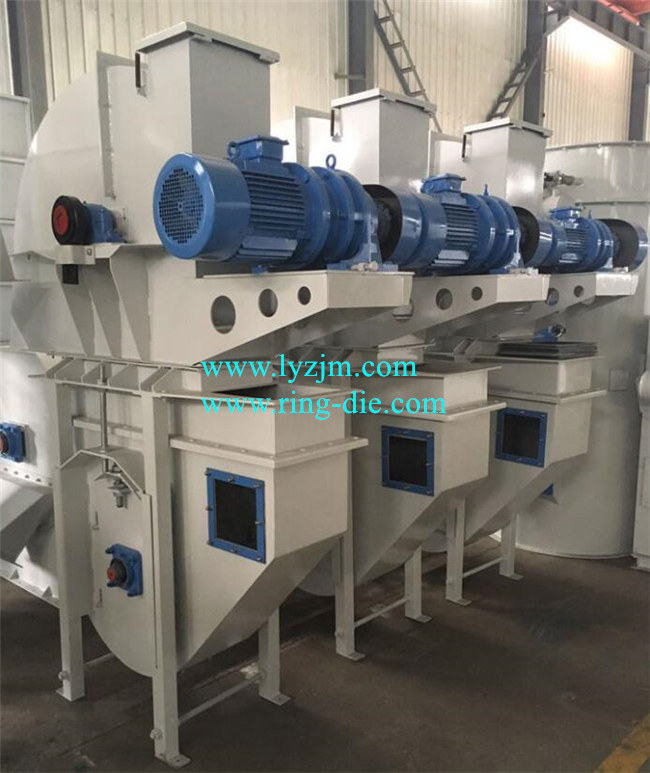

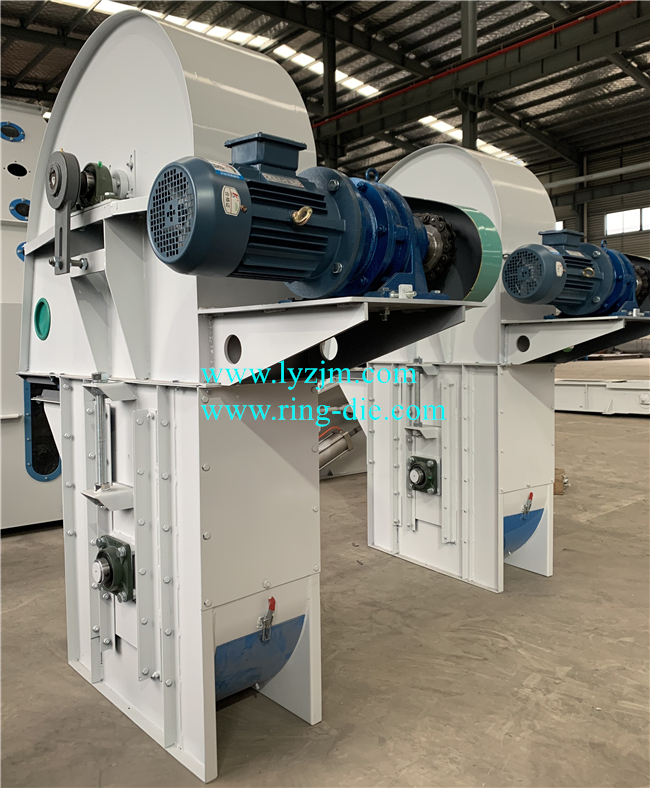

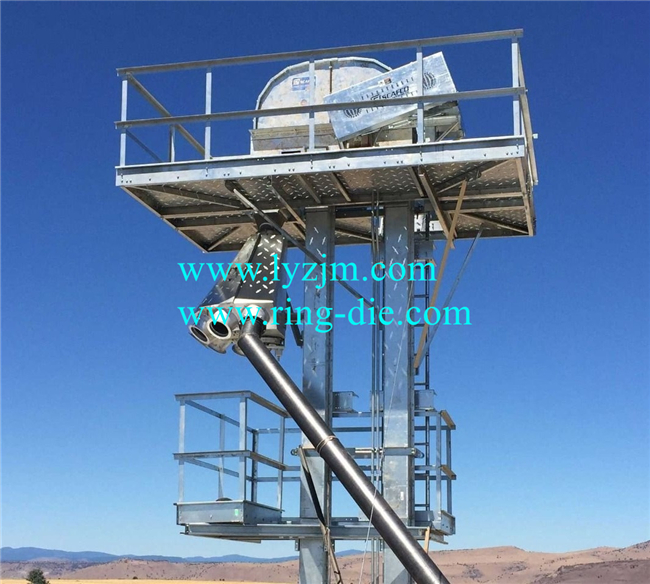

TDTG Bucket elevator, bucket elevating machine, silo elevator machine, bucket vertical transporter, vertical lifting machine, bucket elevator lifter, bucket lifting elevator

1.Advantage

1.1.The structure is compact and overall dimension of cross section is small, thus floor space can be saved remarkably;

1.2.Elevator foot can be fitted with direct and converse feeding hopper for users’ selection according to requirement;

1.3.Rubber-covering technology is used for head pulley and tail pulley so as to increase the friction coefficient and improve the driving efficiency;

1.4.A transition section is added under the head pulley and fitted with outlet adjusting plate and buffer chamber so as to reduce the return of materials and improve the capacity;

1.5.Elevator head is fitted with changeable wearproof plate;

1.6.Explosionproof elevator housing is available and can effectively prevent the explosion of dust;

1.7.Tensioner is fitted with spring buffer device so as to reduce the vibration and prevent belt from breaking caused by sudden overload;

1.8.The tensioning plate is fitted with two layers of seal so as to overcome the leakage of dust and materials from the adjusting plate;

1.9.Speed detector and offset alarm can be used according to users’ requirement so as to ensure safe and normal production;

1.10.Anti-reverse device can be used to prevent the machine from being blocked due to power failure;

2. Technical Parameters
