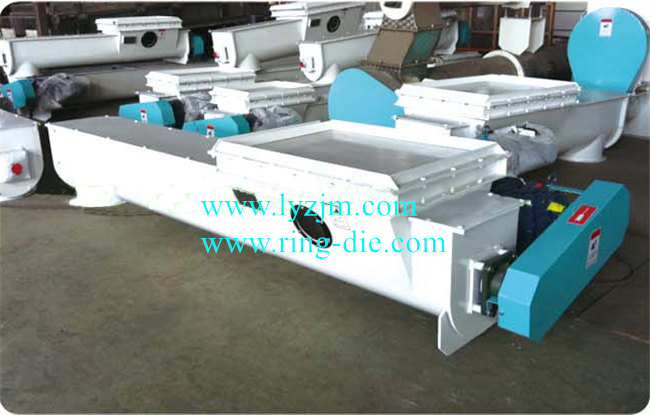

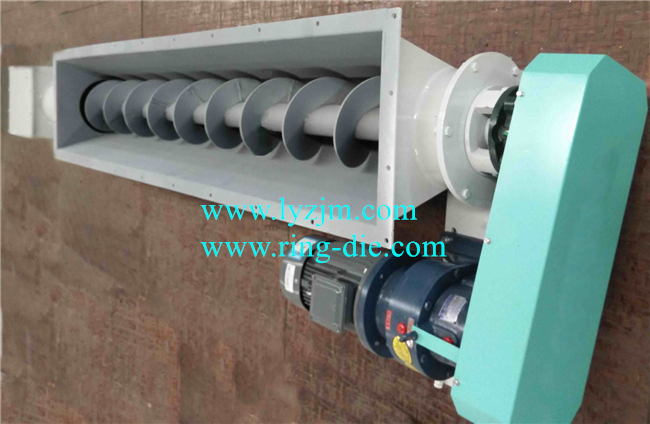

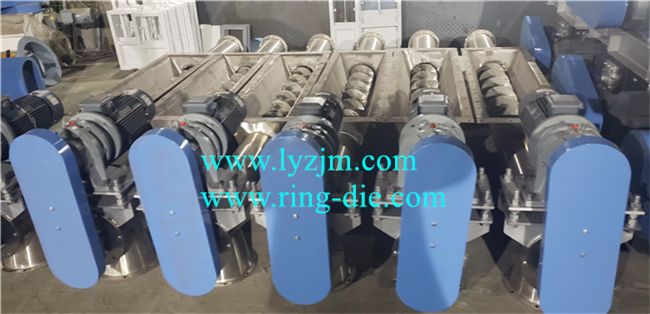

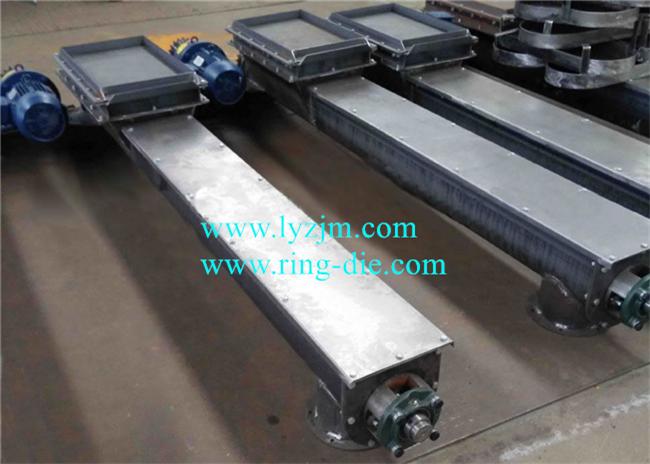

TLSS Screw conveyor

TLSS Screw Conveyor, screw feeder, Tublar Screw Conveyor , Grain conveyors, screw conveyors, screw transporting machine, spiral screw conveyor, feeding conveyor machine,feeding transporter, transporting conveyor, spiral conveyor, spiral feeder

1. Advantage

1.1. The enclosed screw conveyor uses cycloid pinwheel reducer drive, drive torque.

1.2. Professional manufacturing sounded blades, conveyor uniform, and made equal diameter pitch, adjustable isometric form.

1.3. The enclosed screw conveyor is small in size, high speed, uniform feeding, high accuracy, less residual.

1.4. The import vane of screw conveyor is arranged with reasonable way to insure the product.

1.5. You can assemble automatic alarm system and speed monitoring system.

2. Technical Parameters

Parameters

Model

TLSS16

TLSS20

TLSS25

TLSS32

TLSS40

Capacity(t/h)

3-7

8-12

14-20

25-30

30-35

Screw Diameter(mm)

160

200

250

320

400

Cylinder body wide(mm)

180

220

270

340

420

Distance between blade and cylinder(mm)

10

10

10

10

10

Max speed(rpm)

140

140

130

110

100

Size(mm)

W

260

300

360

435

525

H

342

422

502

612

762
