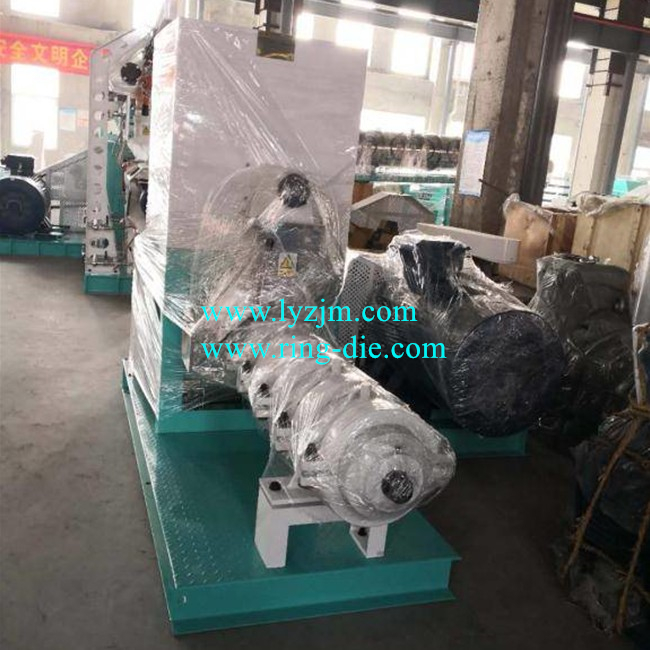

DSCE100G、135G、155G、200G Model Dry Extruder

As one kind of hydrothermal processing equipment, extruders can process not only compoundfeed, but also different feed ingredients like soybean, corn, wheat, rice bran,various plant and animal proteins through simple change of part configurations for the purpose of destruction of microbes, inactivation of anti-nutritionalfactors, starch gelatinization and improving FCR. We supply not only multifunctionextruders like series DSCE -G dry extruders and series DSCE -S steam extruders, but also exclusive extruders like series DSCE-SS for oily ingredients and DSCE-SC for starchy materials.

1.Features

1.1.Different screw and shear lock configurations are available for optimal processing of different materials.

1.2.Nozzle, die plate and annular gap altogether 3 kinds of outlets for different shapes of products.

1.3.Special alloy wear parts including screws, shear locks and barrel liners for longer life and lower production cost.

1.4.Screw feeder driven by frequency convertor for easy operation.

1.5.Integrated founding bearing house & stands for smooth operation.

1.6.Heavy duty bearings with oil cooling and filtering system for longer bearing life.

2.Application

2.1.The urease activirty can be lowered to 0.02-0.2 after soybean is extruded.

2.2.The gelatinization of starch can be increase up to 90% for corn meal.

2.3.The detoxication rate of gossypol can reach 80%.

2.4.It can restrain the activity of lipase in rice bran efficiently and damage the structure of fat after the rice bran is extruded, so it can achieve the purpose of store.

2.5.Fish-meal can be extruded for pasteurization.

2.6.The extruder can increase the palatability of piglet feed and prevent the piglet from diarrhea.

3.Performance characteristics

3.1.Compact structure with simple complement equipment, easy to operate and maintain . It can deal with corn and soybean in grain shape.

3.2.Particularly suitable for corn, non-protein nitrogen for ruminant, feather powder,MBM.As well as bran for keeping-fresh ,fish powder, cottonseed for de-toxication.·

3.3.Combined main shaft can adapt a variety of materials.
